SPECIFICATIONS

Average Life (hrs): more than 5000hours

Brand Name: TNALANT

Certification: CCC,ce,FCC,ROHS,NONE,CE,RoHs

Choice: yes

Color Temp(K): 2700k-6500k

High-concerned chemical: None

Is Batteries Included: No

Is Smart Device: No

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 30/60/144

Luminous Flux: <60

Model Number: WS2815

Nominal Voltage: 12V

Occasion: LIVING ROOM,LIVING ROOM

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 30/60/144

Strip type: SMD

Voltage: 12 V

Waterproof: Yes

semi_Choice: yes

Note: This link does not include DC12V power supply

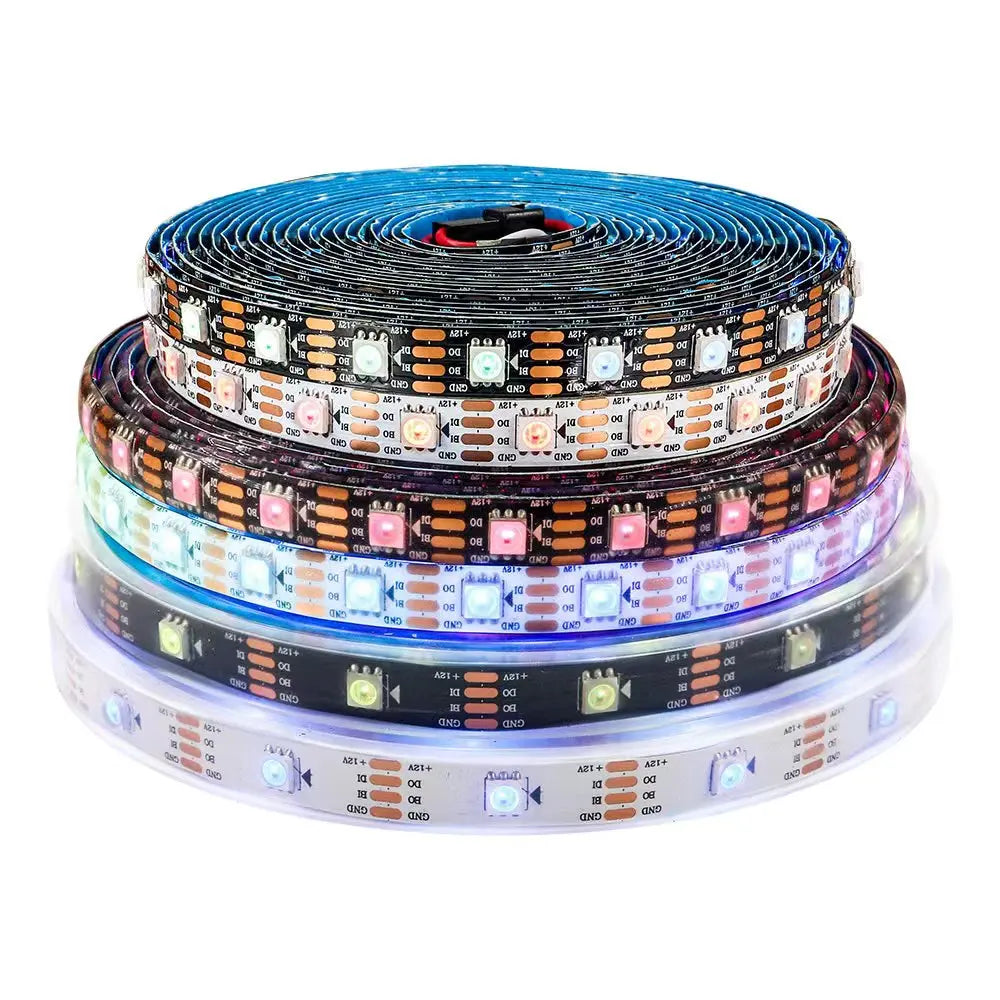

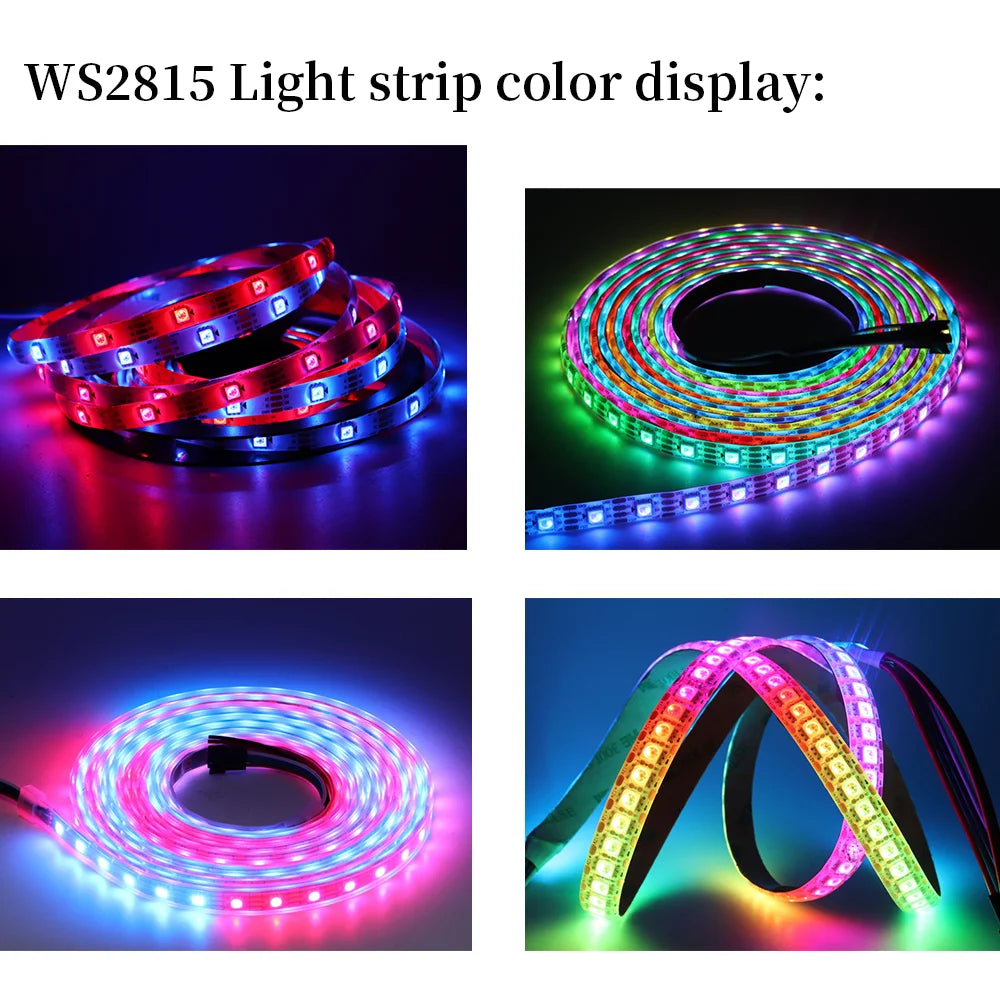

LED light source: WS2815 LED Strip

Same protocol as WS2813S with Dual-signal wires, so can be controlled by the same WS2811/WS2812 controllers

Input voltage: DC12V;

Power: 30leds/m----9watt/meter

60leds/m----18watt/meter

144leds/m----34watt/meter

LED resource: WS2815 led(5050 SMD RGB LED with built-in improved version of WS2811IC)

LED: Each LED is separately controlled

IC Type: Improved Version WS2815 IC(built inside the 5050 SMD RGB led)

of IC: (1 IC drives 1 led chip);

Pixels: 30/60/144/meter;

Pitch: 16.6mm(1000/64);

Grey scale: 256;

Bits/color: 8-bits/color;

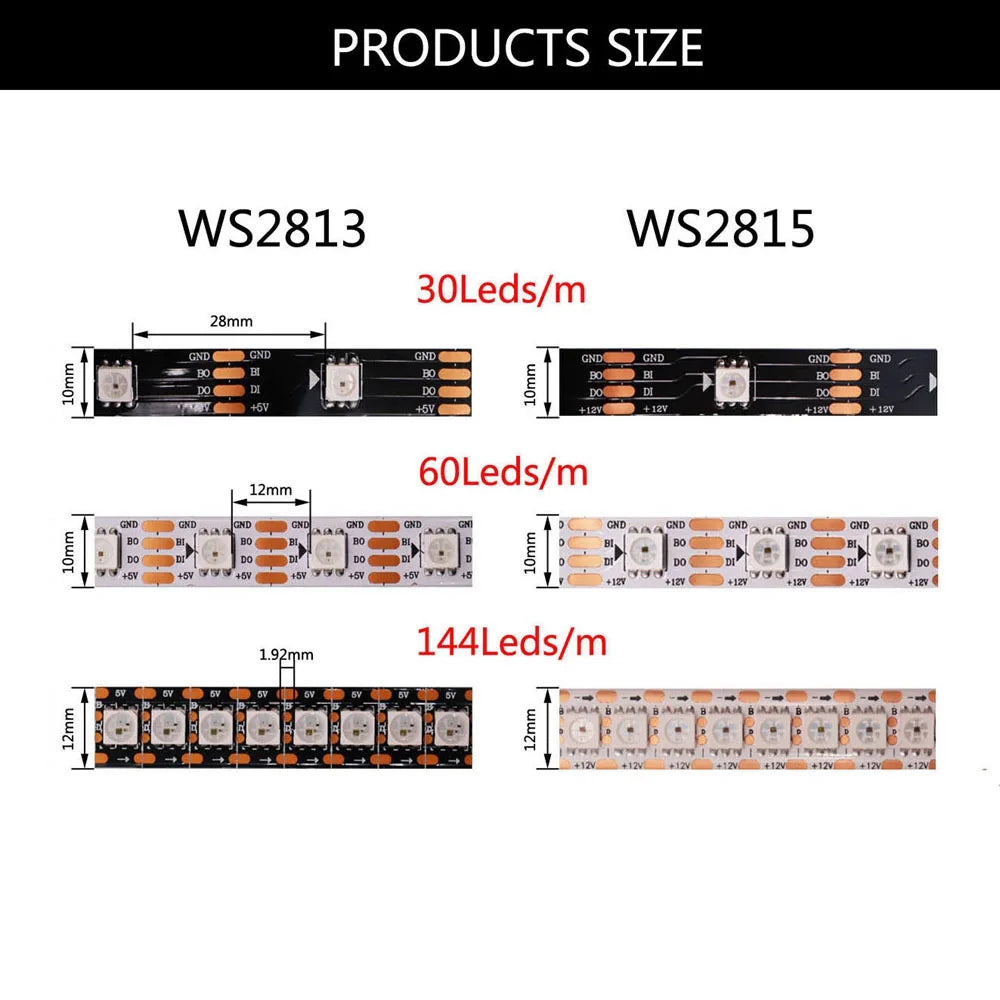

PC Width: 30leds/m----10mm

60leds/m----10mm

144leds/m----12mm

FPC color: White/Black PCB

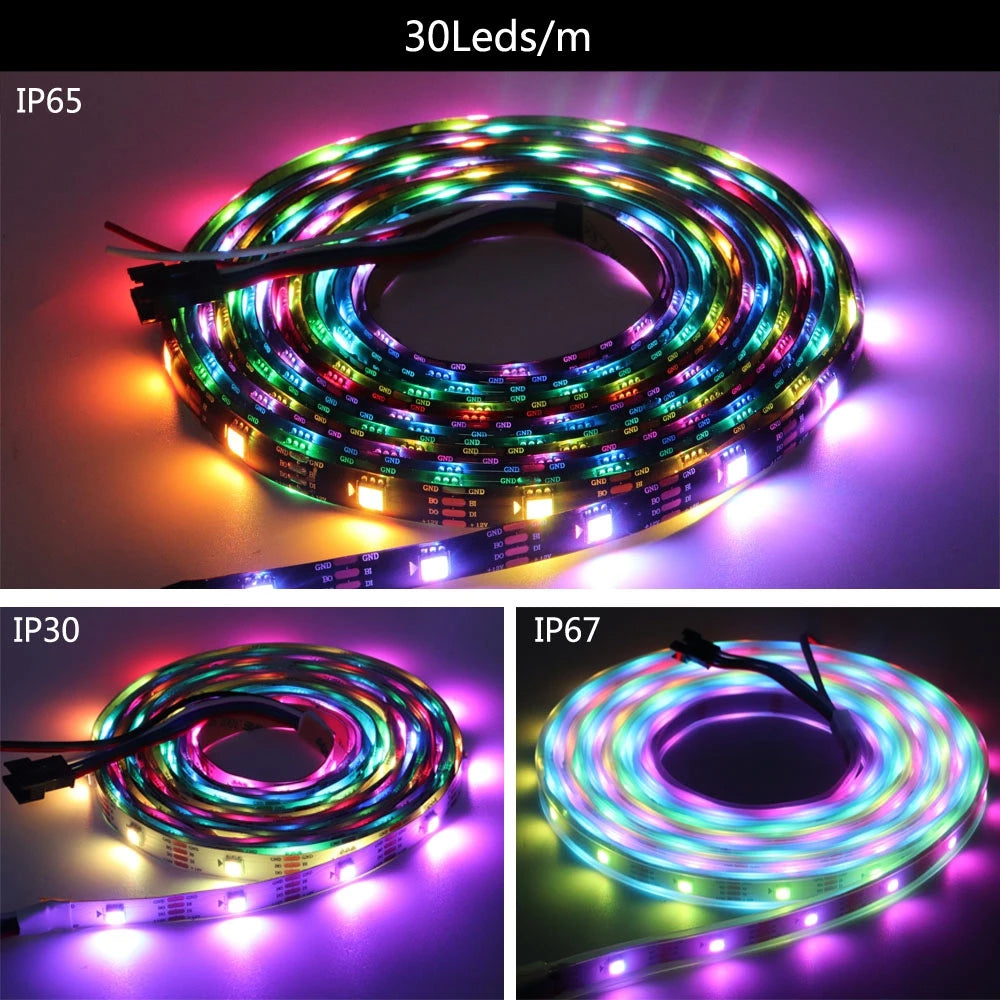

Protection rate: IP30/ IP65 /IP67

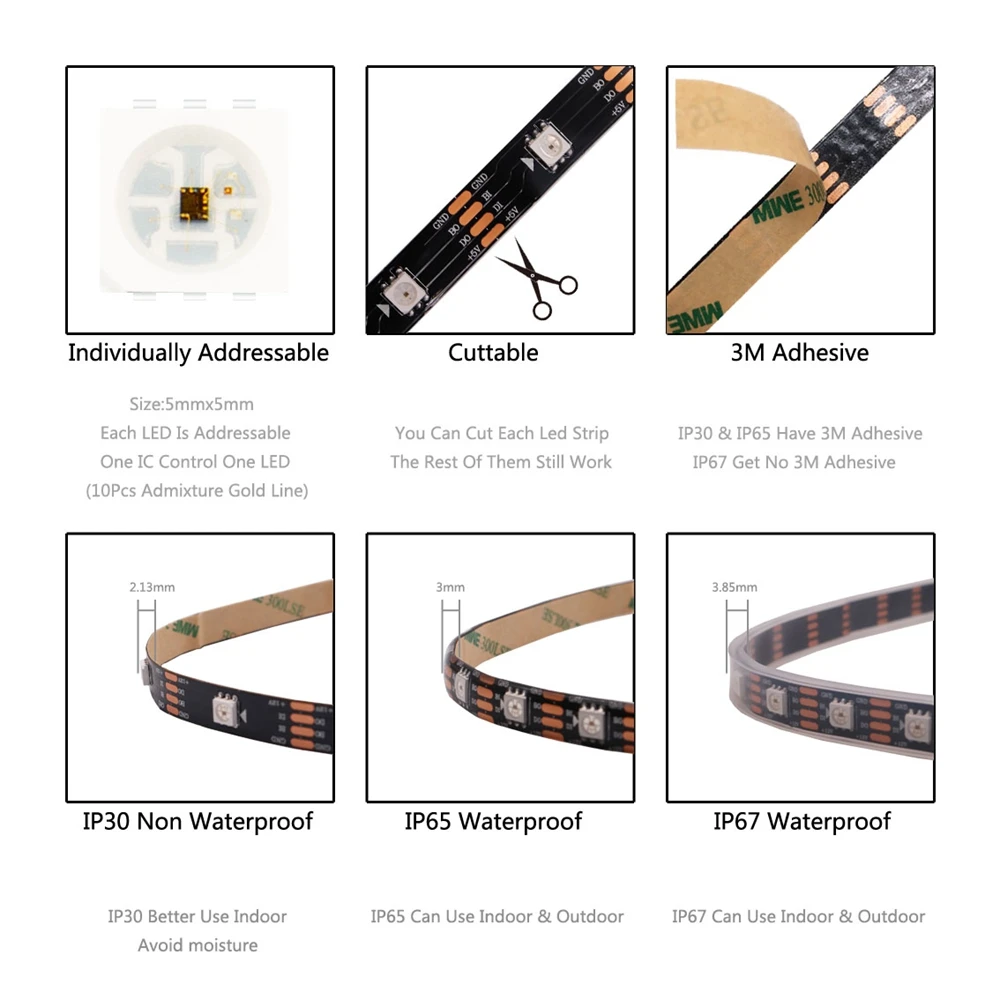

Colors: Full color RGB, dream color changing; Cuttable : every LED is cuttable;

Package: in anti-static bag,IP30 IP65 with 3M adhesive tape on the back(IP67 without 3M adhesive)

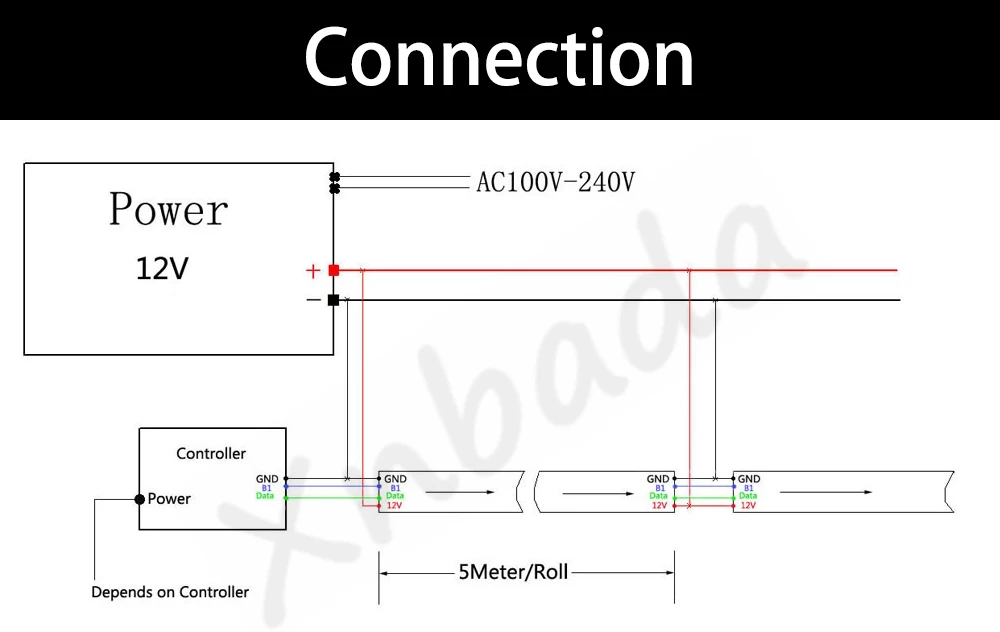

Connector: 4PIN Connector terminal pair

(Red: 12V power , green: Date line, Blue: standby date line, Black: GND)

1. all the electronic components are integrated in a 5050 lamp beads, it does not require any other peripheral auxiliary electronic components to form a complete external control pixels. While reducing the product at the time of installation inverted Weld, caused by poor.

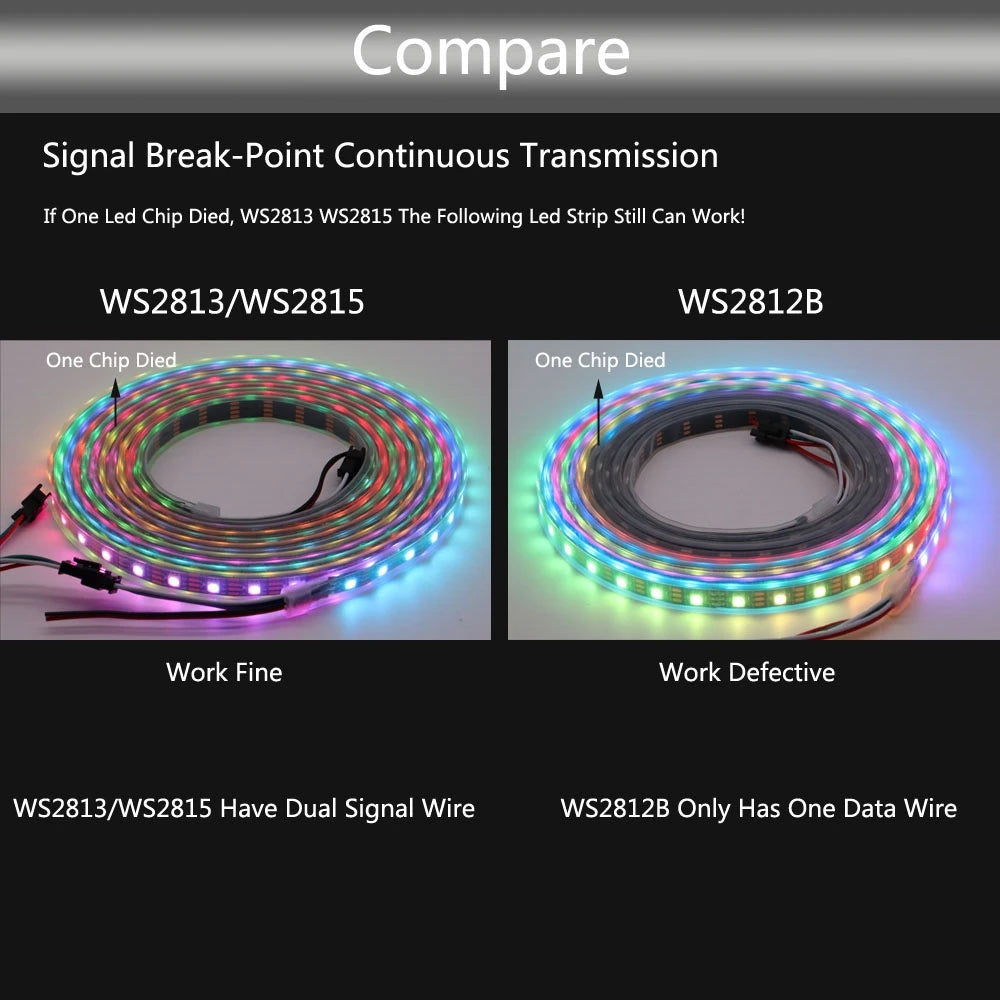

2. serial cascade interface, dual-line signal transmission, to achieve the functions of HTTP, which under a single pixel without causing damage to its lower pixel normal lighting, silk ho does not affect the overall results.

3. intelligent reverse polarity protection, product installation access 5V power supply in case of reverse, will not cause damage to the lamp beads.

4. built-in signal shaping circuit, any one pixel after receiving the signal through the waveform shaping and then output to ensure line waveform distortion will not accumulate.

5. the transmission distance between any two points in less than 5 meters without any additional signal amplification circuit.

6. when a refresh rate of 30 frames / sec, the number of cascades of not less than 1024 points.

7. the data transmission speed of up to 800Kbps. Light color consistency, cost-effective.

Features:

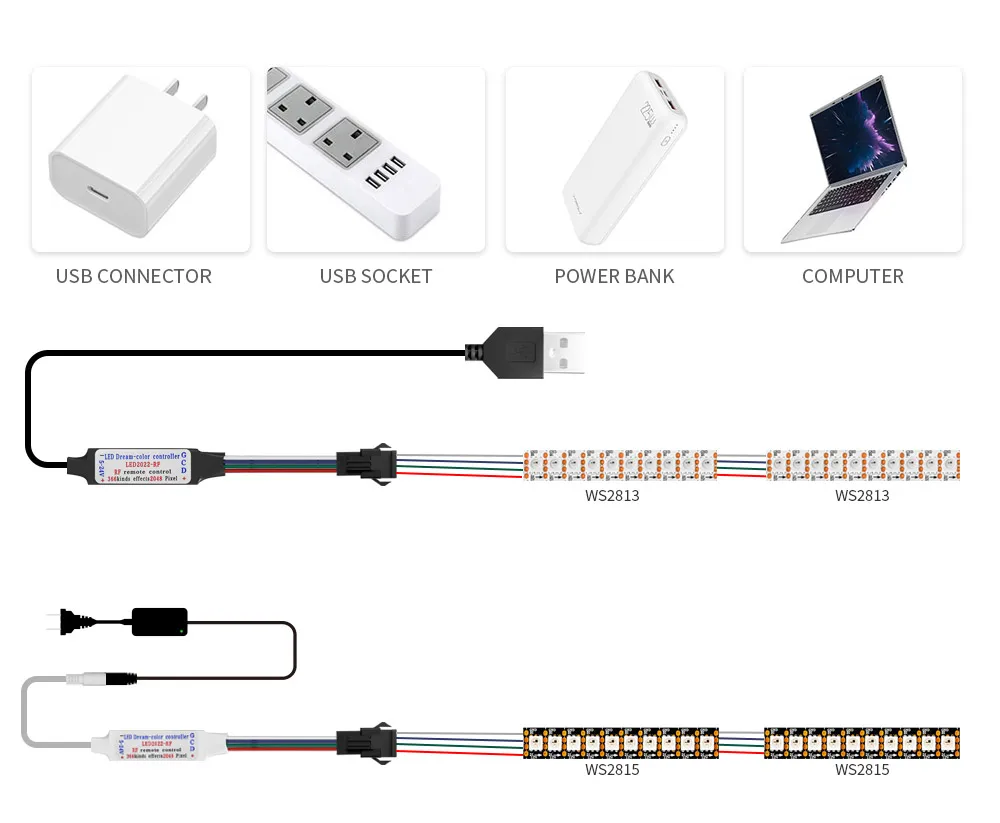

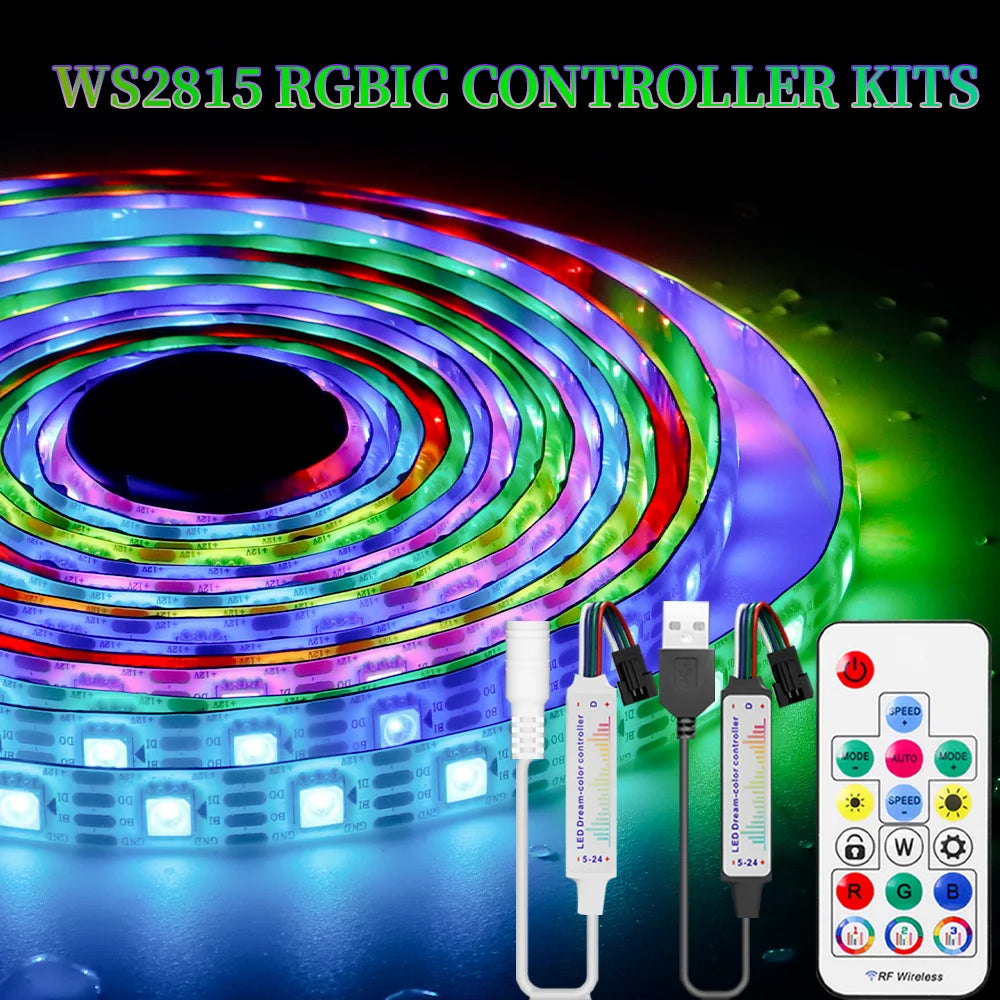

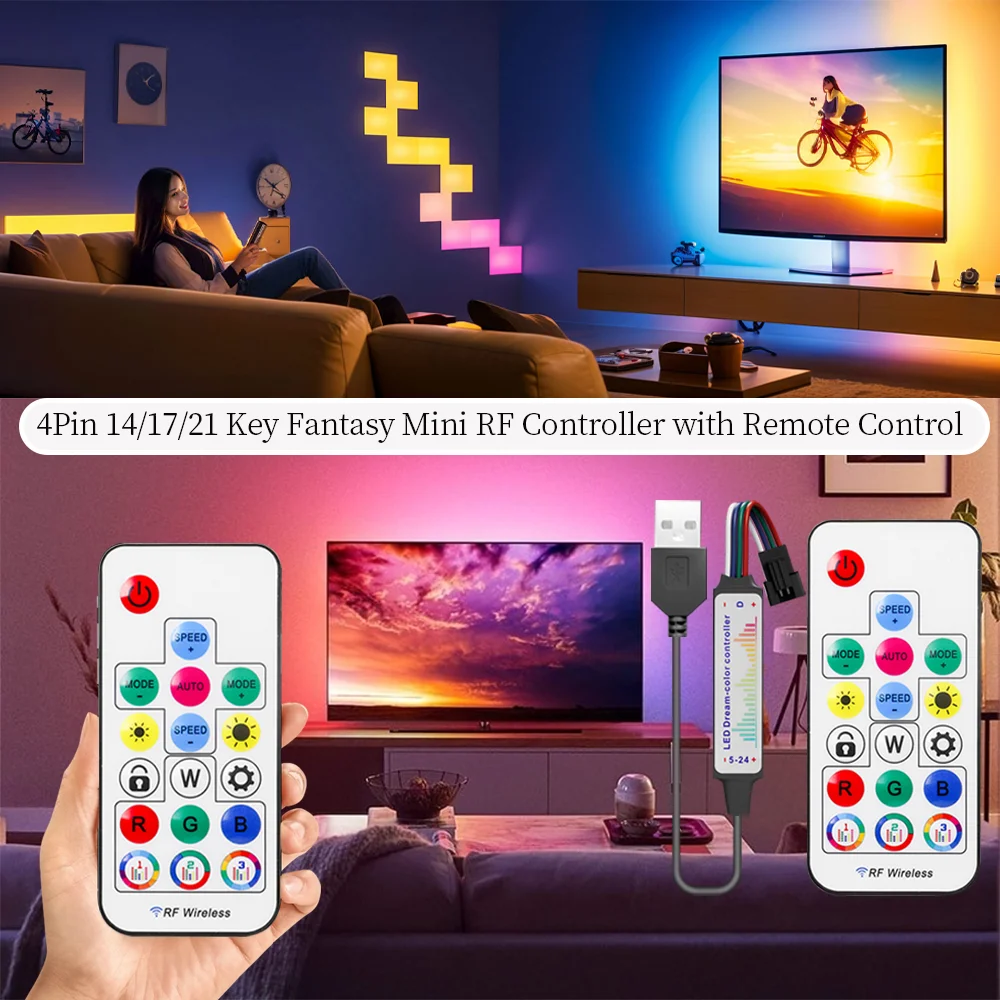

DC LED Controller(Fit WS2813 and WS2815)

RF Remote control, long distance, mini size, wire connection is simple and very easy to use;

Support almost every kind of one-wire or two-wire LED-DRIVER-IC ;(Can be customized)

With 366 kinds of patterns, which are vivid and beautiful;

Each controller can control up to 2048 pixels;

With user setting saving functionality;

Brightness adjustable.

Preventing reverse connection of power supply.

working voltage:DC5V-24V

(Battery not included)(Remote Battery do not lower than 3V or can not control)

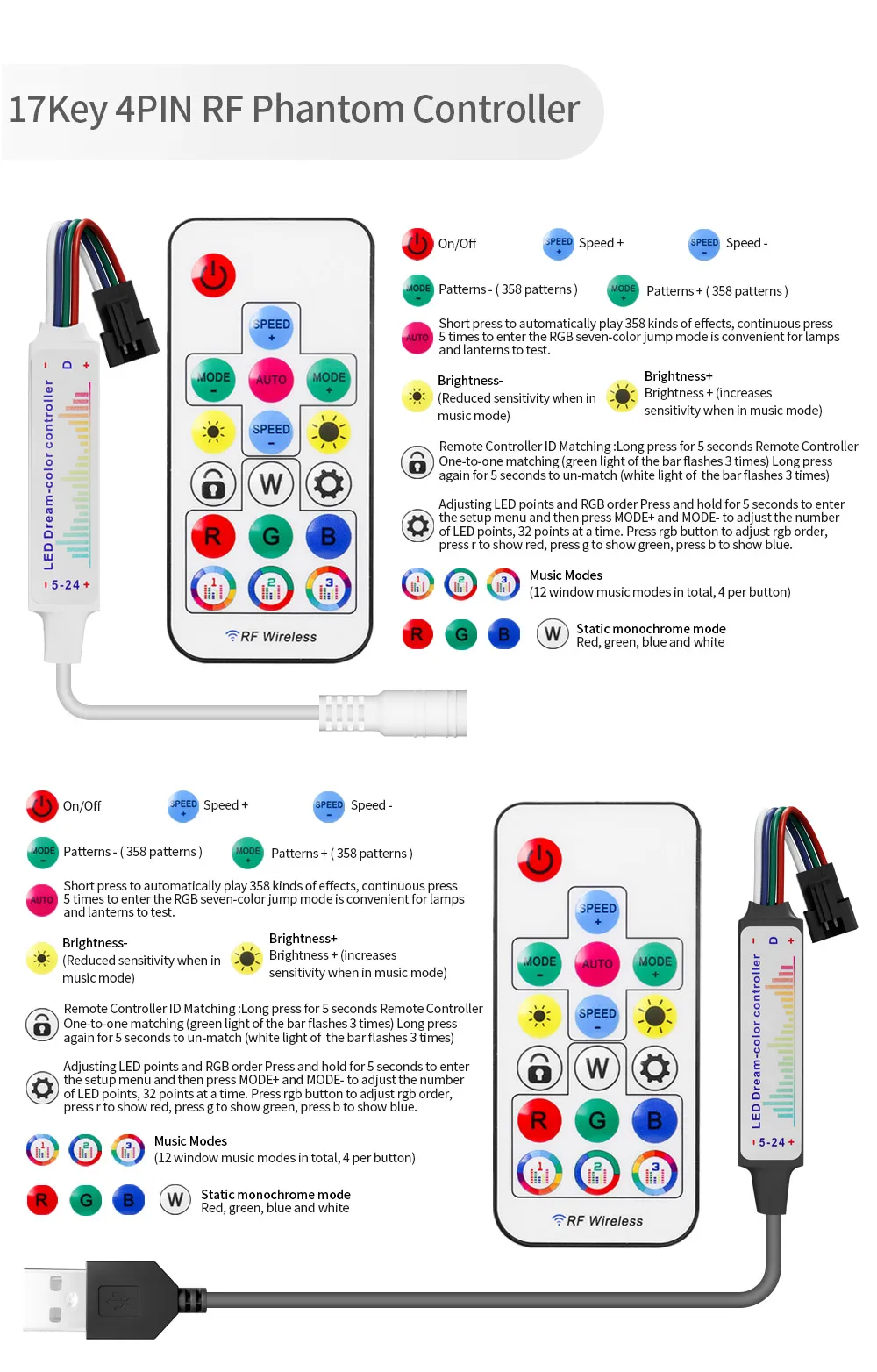

USB LED Controller(Fit WS2813)

RF Remote control, long distance, mini size, wire connection is simple and very easy to use;

Support almost every kind of one-wire or two-wire LED-DRIVER-IC ;(Can be customized)

With 366 kinds of patterns, which are vivid and beautiful;

Each controller can control up to 2048 pixels;

With user setting saving functionality;

Brightness adjustable.

Preventing reverse connection of power supply.

working voltage:DC5V

(Battery not included)(Remote Battery do not lower than 3V or can not control)
